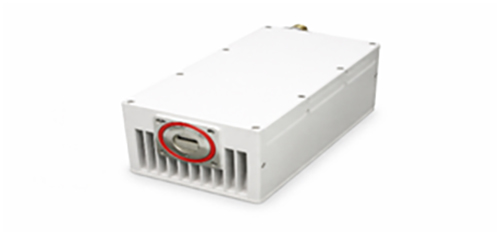

Operating RF Frequency

AKS      14.0 - 14.5 GHz

AKU     13.75 - 14.5 GHz

AKD     13.75 - 14.5 | 14.0 - 14.5 GHz

AKL      12.75 - 13.25 GHz

Operating IF frequency

950 - 1700 | 950 - 1450 MHz

GAIN

Gain (Temperature Compensated): 55 dB(min) 60 dB(typ.)

TX Gain Flatness:        ± 0.75 dB max. over 40 MHz

TX Gain variation 50MHz:  ± 0.5 dB

TX Gain variation 500MHz: ± 1.5 dB

For further details, please contact us.

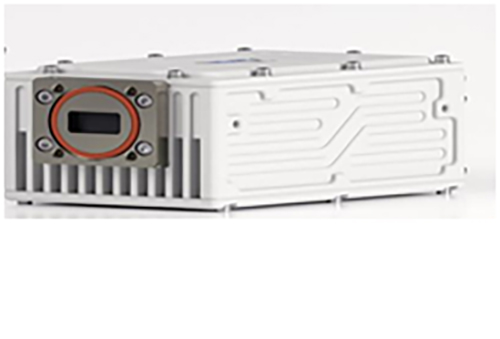

Frequency:

RF:  12.75-13.25 GHz

IF:   950–1450 MHz

Gain Variation:  1 dB p-p max./ 36 MHz, ≤3 dB p-p    max./ 500 MHz, 4 dB p-p max./ 750 MHz

Gain Stability:  3 dB p-p max.

For further details, please contact us.
