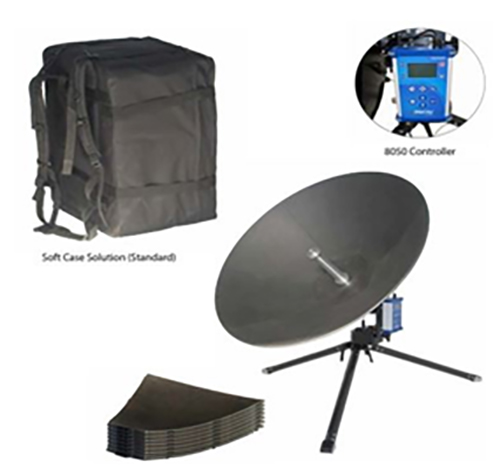

1m Auto Tracking Antenna (Ku, Ka or X band) (MP-101-MOT)

The iNetVu® MP-101-MOT is a fully motorized, auto-acquire, 100 cm carbon fiber Manpack antenna. This robust and lightweight system will point to any programmed satellite with just the push of a button on the NEW iNetVu® 8050 Controller. The 8050 Controller supports DVB-S2X and is fully compatible with alist of open AMIPsupportedmodems

Operating Frequency (GHz):

Ku-Band (Linear)

Rx: 10.70- 12.75(2)  Tx: 13.75 - 14.50

Ka-Band (Circular)

Rx: 17.7 - 21.2(2)      Tx: 27.5 - 31.0

X-Band (Circular)

Rx:7.25 - 7.75(2)TX: 7.90 - 8.40

Antenna Gain:

Ku-Band (Linear)

Midband Gain (± .2 dBi) : Rx: 40.10      Tx: 41.40

Ka-Band (Circular)

Midband Gain (± .2dBi):   Rx: 44.50      Tx: 47.60

X-Band (Circular)

Midband Gain (± .5dB):    Rx: 36.40       Tx: 37.0



For further details, please contact us.

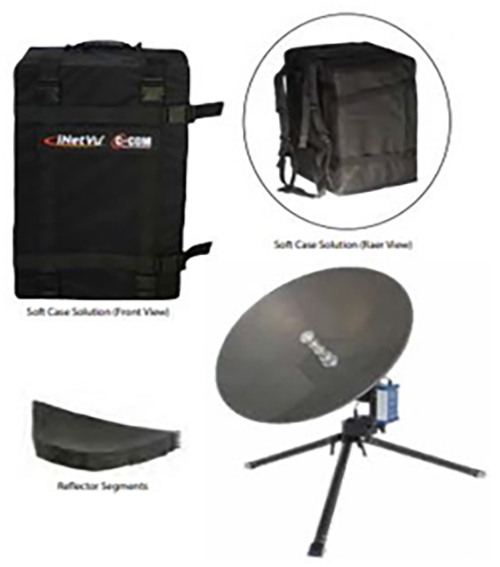

0.8m Auto Tracking Antenna (Ku, Ka or X band) (MP-81-MOT)

The iNetVu® MP-81-MOT is a fully motorized, auto-acquire, 80 cm carbon fiber Manpack antenna. This robust and lightweight system will point to any programmed satellite with just the push of a button on the NEW iNetVu® 8050 Controller. The 8050 Controller supports DVB-S2X and is fully compatible with a list of open AMIP supported modems.

Operating Frequency (GHz):

Ku-Band (Linear)

Rx: 10.70- 12.75(2)  Tx: 13.75 - 14.50

Ka-Band (Circular)

Rx: 17.7 - 21.2(2)      Tx: 27.5 - 31.0

X-Band (Circular)

Rx:7.25 - 7.75(2)       TX: 7.90 - 8.40

Antenna Gain:

Ku-Band (Linear)

Midband Gain (± .2 dBi) : Rx: 38.30     Tx: 39.60

Ka-Band (Circular)

Midband Gain (± .2dBi):   Rx: 42.60     Tx: 45.70

X-Band (Circular)

Midband Gain (± .5dB):    Rx:34.60      Tx: 35.0

For further details, please contact us.

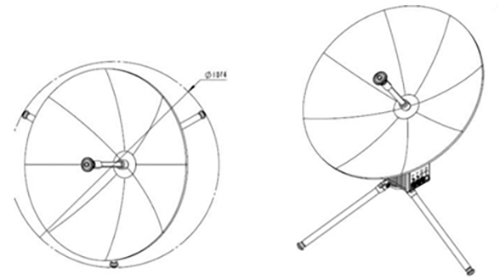

1.0m Low-Ku band Portable VSAT(KBM1000LKA)

The high-altitude satellite base station is an intelligent and highly integratedairborne satellite communication device.It is suitable for emergency communications, fire rescue, medical emergencyservices, military communications, and other fields.The main antenna support system is made of carbon fiber, and the entiresystem is 70% composite material. This results in more stable, lighter, andstronger materials, making it more portable.

Reliability: Delivering robust systems that minimize downtime and maximize efficiency.

Scalability: Future-ready solutions that adapt as your business grows.

Customization: Tailored services to address the specific needs of your enterprise.

Innovation: Utilizing the latest technologies to stay ahead in the market.

Operating frequency

Rx:10.70～11.7 Ghz

Tx:12.75～13.25 Ghz



Antenna Gain

Rx:≥38.8+20lg（f/11.3) dBi

Tx:≥40.0+20lg（f/13.0)dBi

For further details, please contact us.

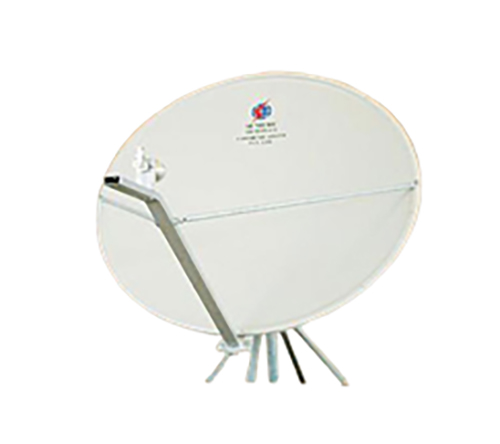

1.2 Mtr Ex-Ku-Band VSAT Antenna (101012026)

The Sumeru 1.2 m Trans-receive antenna is designed and manufactured for enduring conditions. The reflector is compression molded thermoset off set reflector. It has inherent closely placed rib structure on the back of reflector to give enhanced strength for wind loading and also maintain the required parabolic shape for Ex-Ku band application.

Reliability: Delivering robust systems that minimize downtime and maximize efficiency.

Scalability: Future-ready solutions that adapt as your business grows.

Customization: Tailored services to address the specific needs of your enterprise.

Innovation: Utilizing the latest technologies to stay ahead in the market.

Operating frequency

Tx: 12.75 - 14.50 GHz

Rx: 10.70 - 12.20 GHz

Mid Band Gain (+ 0.2 dB)

Tx: 42.80 dBi

Rx: 41.30 dBi

For further details, please contact us.
